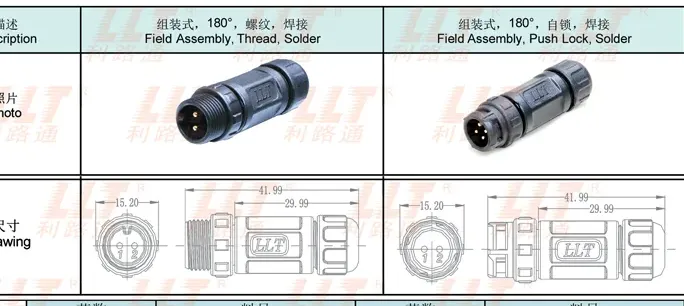

Assembly Series

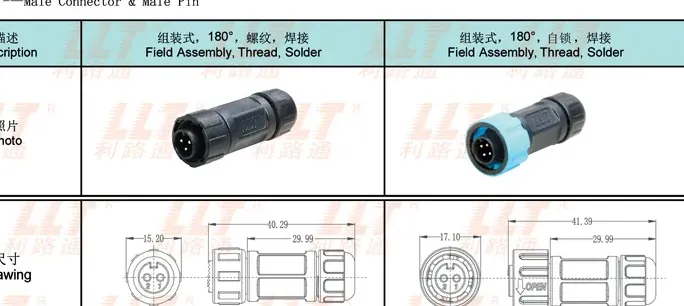

M12 Assembly Male Connector (Male Pin) Assembly Male Connector (Male Pin)

M12 Assembly Male Connector (Male Pin)

Part Number
LLT-M12-10001M1051
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 3.5mm-7.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
1pole
Pin Layout
Pin Layout Diagram
↔
M12 Assembly Female Connector (Male Pin) Assembly Female Connector (Male Pin)

M12 Assembly Female Connector (Male Pin)

Part Number
LLT-M12-10001M1061
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 3.5mm-7.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
1pole
Pin Layout
Pin Layout Diagram

Injection Molded Series

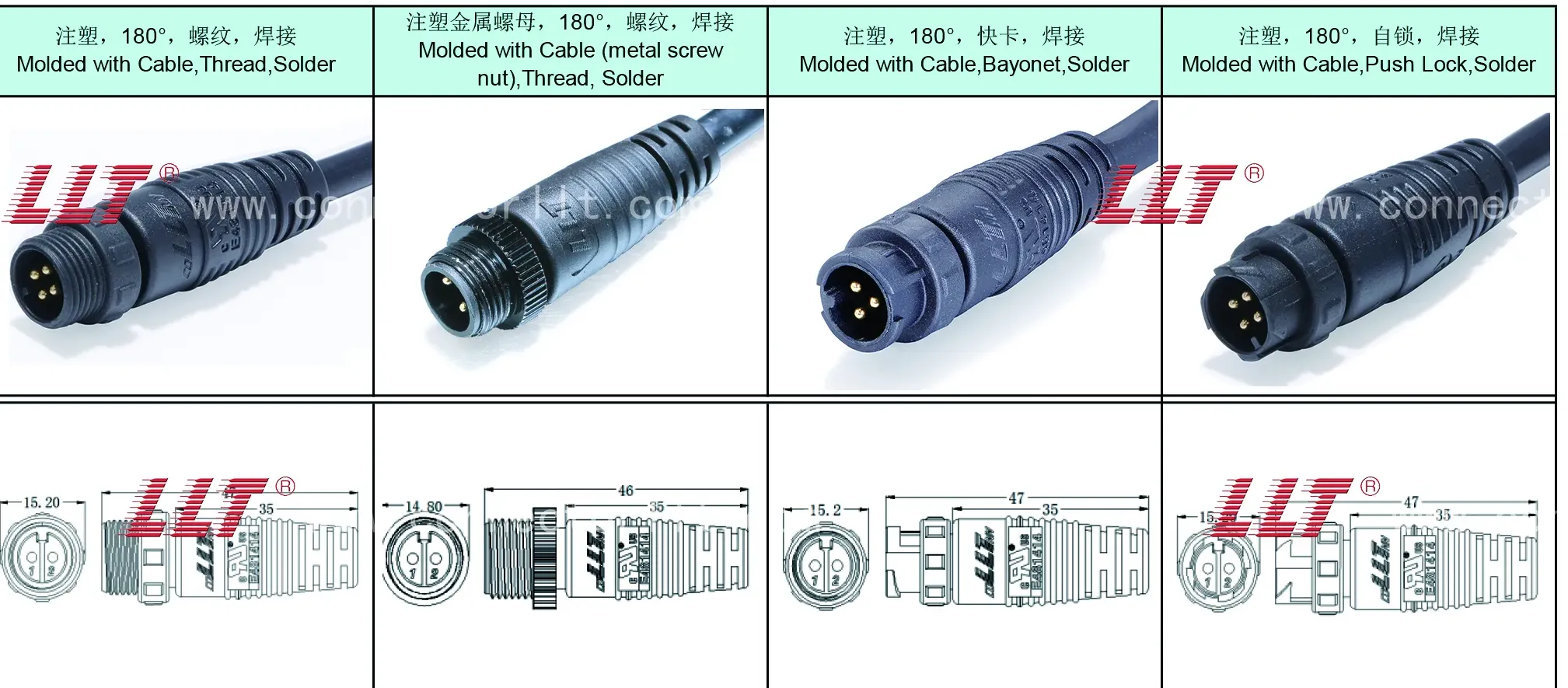

M12 Injection Molded Male Connector (Female Pin) Injection Molded Male Connector (Female Pin)

M12 Injection Molded Male Connector (Female Pin)

Part Number
LLT-M12-10001F3054
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 3.5mm-7.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
1pole
Pin Layout
Pin Layout Diagram
↔

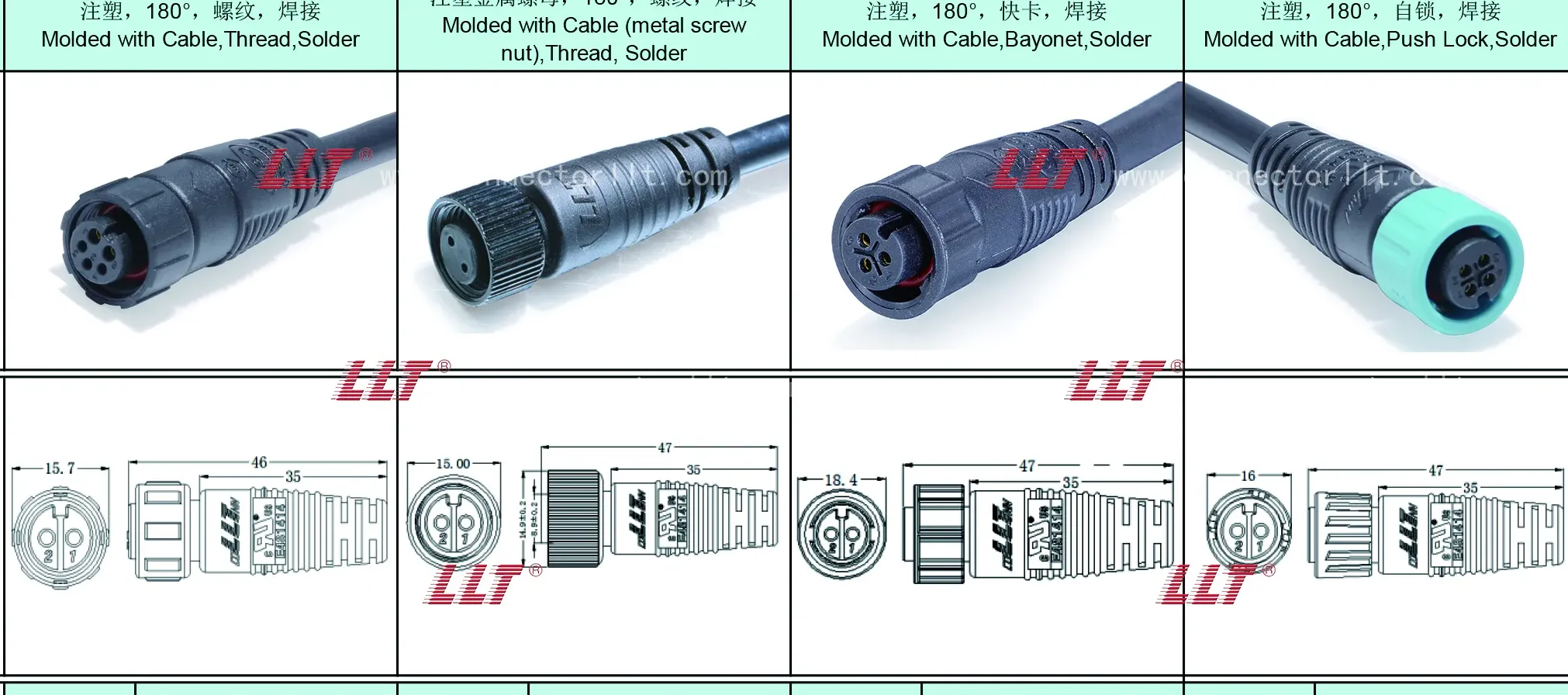

M12 Injection Molded Female Connector (Male Pin) Injection Molded Female Connector (Male Pin)

M12 Injection Molded Female Connector (Male Pin)

Part Number
LLT-M12-10001M3064
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 3.5mm-7.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65
Pin Layout
2~8pole
Pin Layout
Pin Layout Diagram

Metal Series

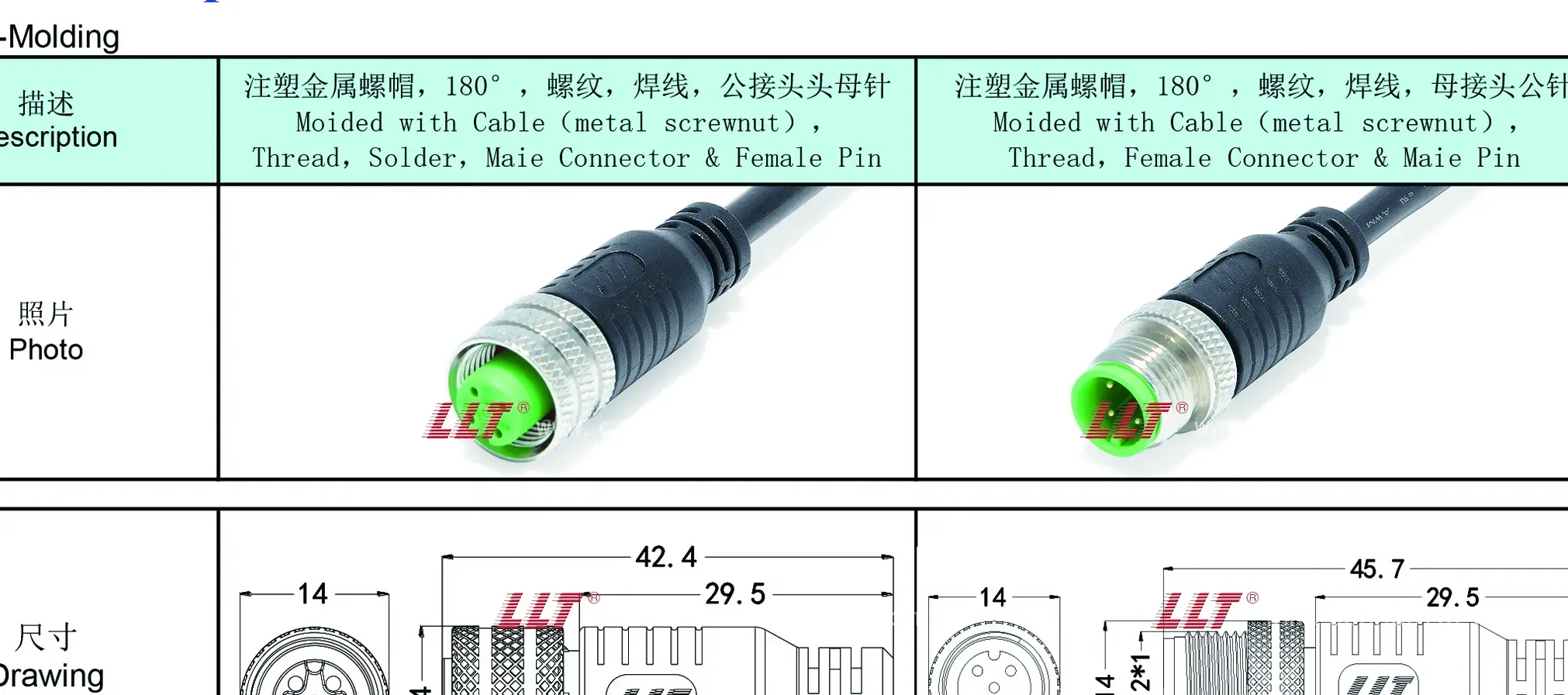

M12 Metal Injection Molded 180° Metal Injection Molded 180°

M12 Metal Injection Molded 180°

Part Number
Rated Voltage
Rated Current
Wire Gauge
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Pin Layout
Pin Layout
Pin Layout Diagram
↔
M12 Metal Injection Molded 90° Metal Injection Molded 90°

M12 Metal Injection Molded 90°

Part Number
Rated Voltage
Rated Current
Wire Gauge
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Pin Layout
Pin Layout
Pin Layout Diagram

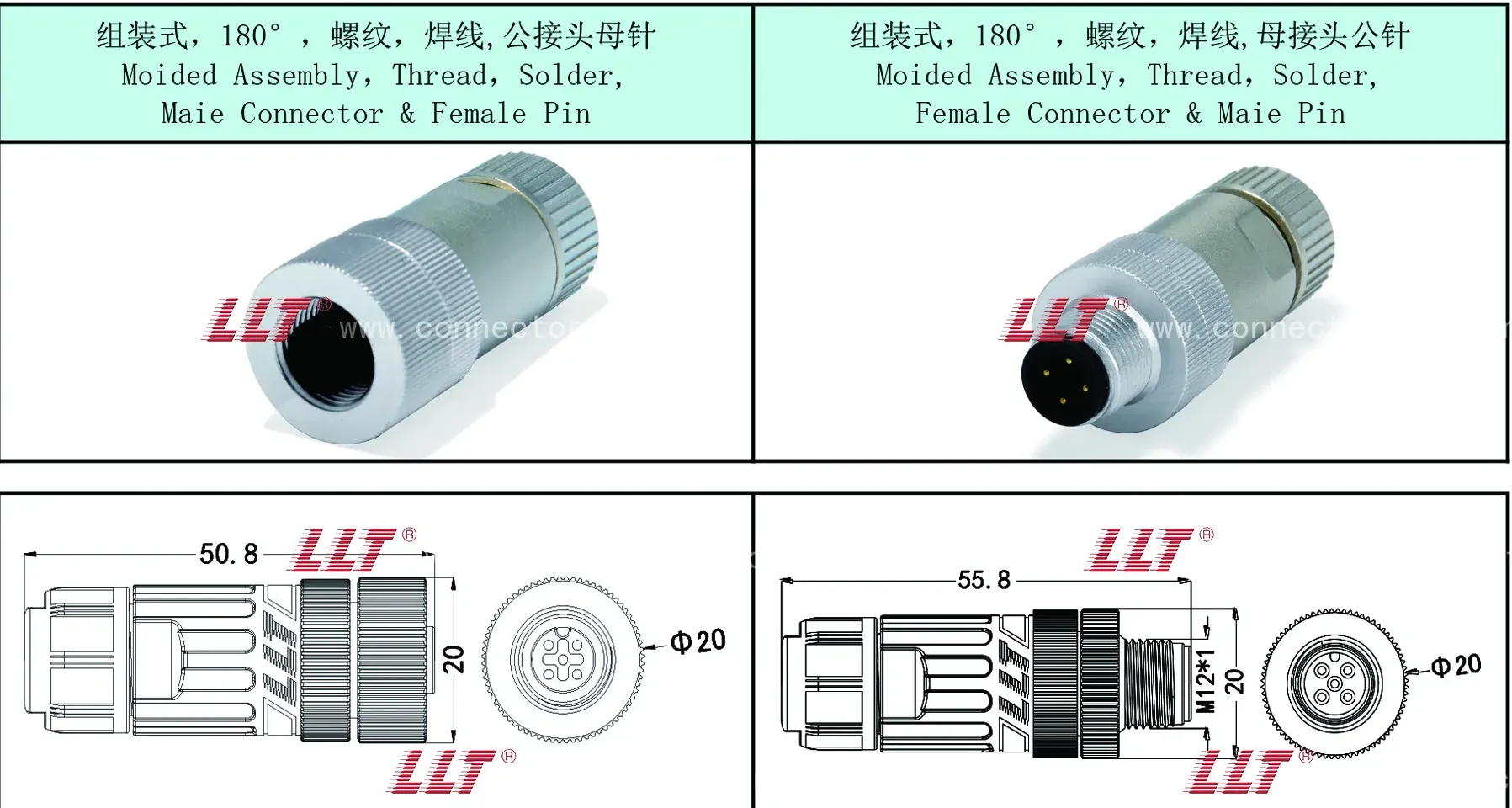

M12 Metal Mating Connector Metal Mating Connector

M12 Metal Mating Connector

Part Number
LLT-M8-05002F1091
Rated Voltage
250V
Rated Current
5A
Wire Gauge
⌀ ≤0.75 mm²
Cable Outer Diameter
⌀ 3mm-6.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram

Panel Mount Series

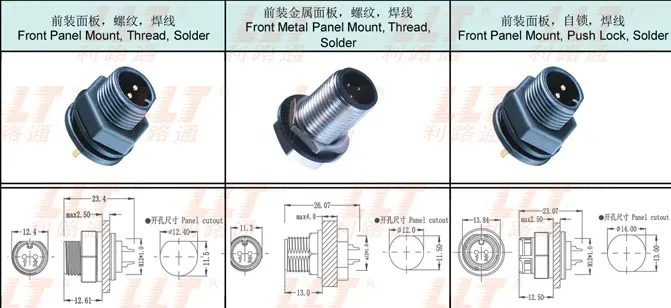

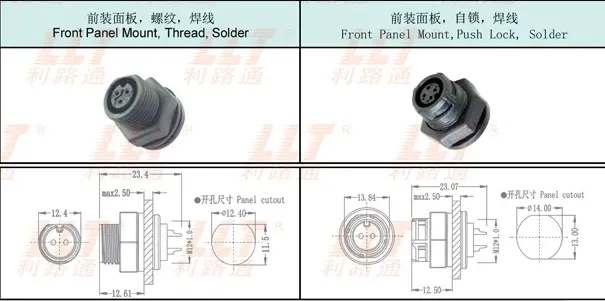

M12 Front Panel Mount (Male) Male Panel Mount 1

M12 Front Panel Mount Male Connector

Part Number
LLT-M12-10001M2861
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2~8pole
Pin Layout
Pin Layout Diagram
↔

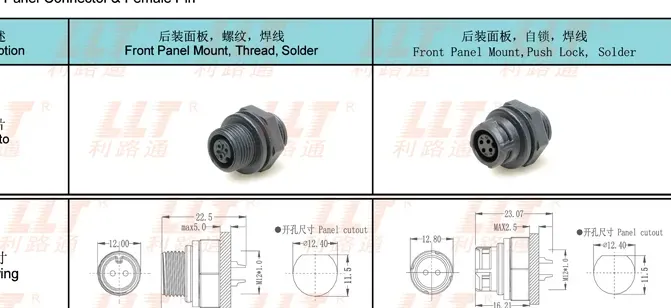

M12 Front Panel Mount (Female) Female Panel Mount 1

M12 Front Panel Mount Female Connector

Part Number
Rated Voltage
Rated Current
Wire Gauge
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Pin Layout
Pin Layout
Pin Layout Diagram

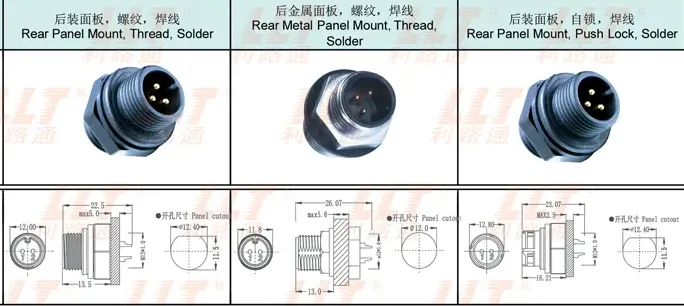

M12 Rear Panel Mount (Male) Male Panel Mount 2

M12 Rear Panel Mount Male Connector

Part Number
LLT-M12-10001F2861
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2~4pole
Pin Layout
Pin Layout Diagram
↔
M12 Rear Panel Mount (Female) Female Panel Mount 2

M12 Rear Panel Mount Female Connector

Part Number
LLT-M12-10001F2961
Rated Voltage
110V
Rated Current
10A
Wire Gauge
⌀ ≤1.0 mm²
Cable Outer Diameter
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2~4pole
Pin Layout
Pin Layout Diagram
