Assembly Series

M16 Male Pin Female Connector M8母针公接头

M16 Male Pin Female Connector

Part Number
LLT-M16-15002F1061
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 3.5mm-8.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

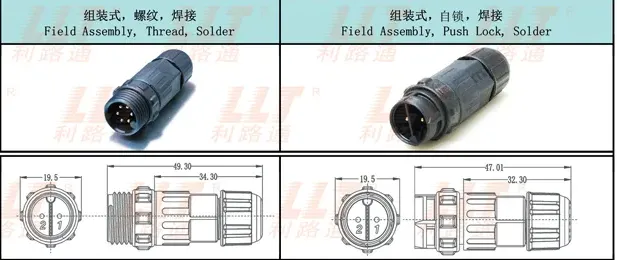

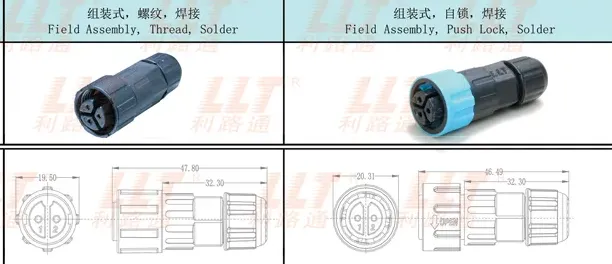

M16 Female Pin Male Connector 注塑式母接头公针

M16 Female Pin Male Connector

Part Number
LLT-M16-15002F1051
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 3.5mm-8.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP65/IP67/IP68
Pin Layout
2~12pole
Pin Layout
Pin Layout Image
M16 Male Pin Male Connector Metal to Metal Connector

M16 Male Pin Male Connector

Part Number
Rated Voltage
Rated Current
Wire Gauge
⌀
Cable Range
⌀
Mating Cycles
Operating Temperature
Protection Level
Pin Layout
Pin Layout
Pin Layout Image

Injection Molding Series

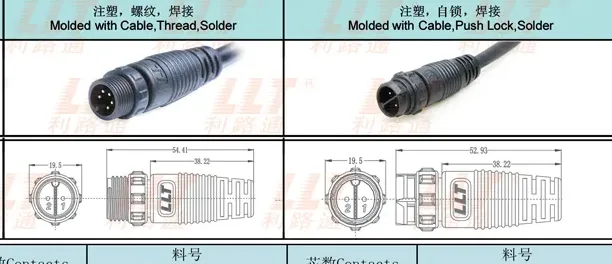

M16 Inject Male Pin Female Connector M16 Male Pin Female Connector

M16 Inject Male Pin Female Connector

Part Number
LLT-M16-15002M3064
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP65
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

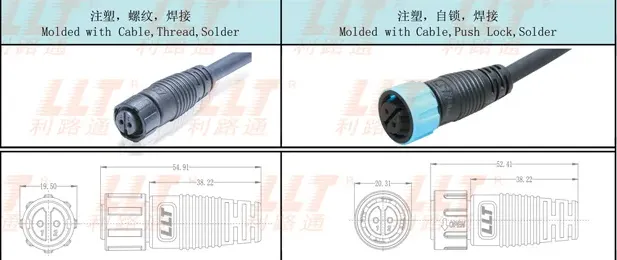

M16 Inject Female Pin Male Connector Female Pin Male Connector

M16 Female Pin Male Connector

Part Number
LLT-M16-15002M3064
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP65
Pin Layout
2pole
Pin Layout
Pin Layout Image

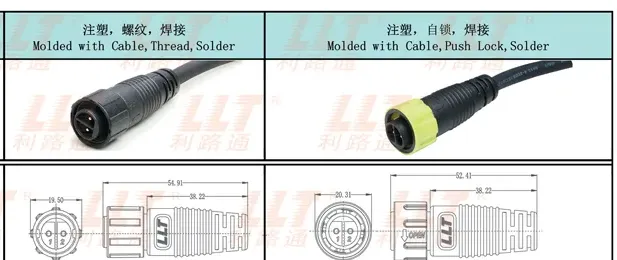

M16 Inject Male Pin Male Connector Male Pin Male Connector

M16 Male Pin Male Connector

Part Number
LLT-M16-15002M3054
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 3.5mm-8.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP65
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

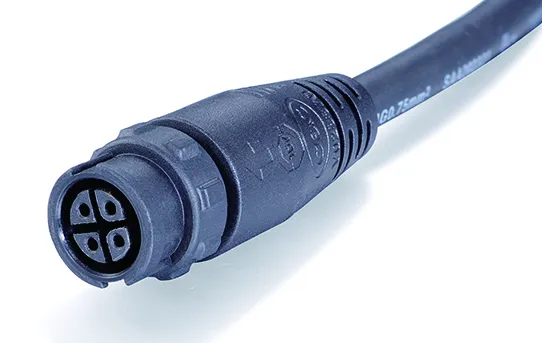

M16 Inject Female Pin Female Connector Female Pin Female Connector

M16 Female Pin Female Connector

Part Number
LLT-M16-15002F3064
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 3.5mm-8.5mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP65
Pin Layout
2pole
Pin Layout
Pin Layout Image

Flange Series

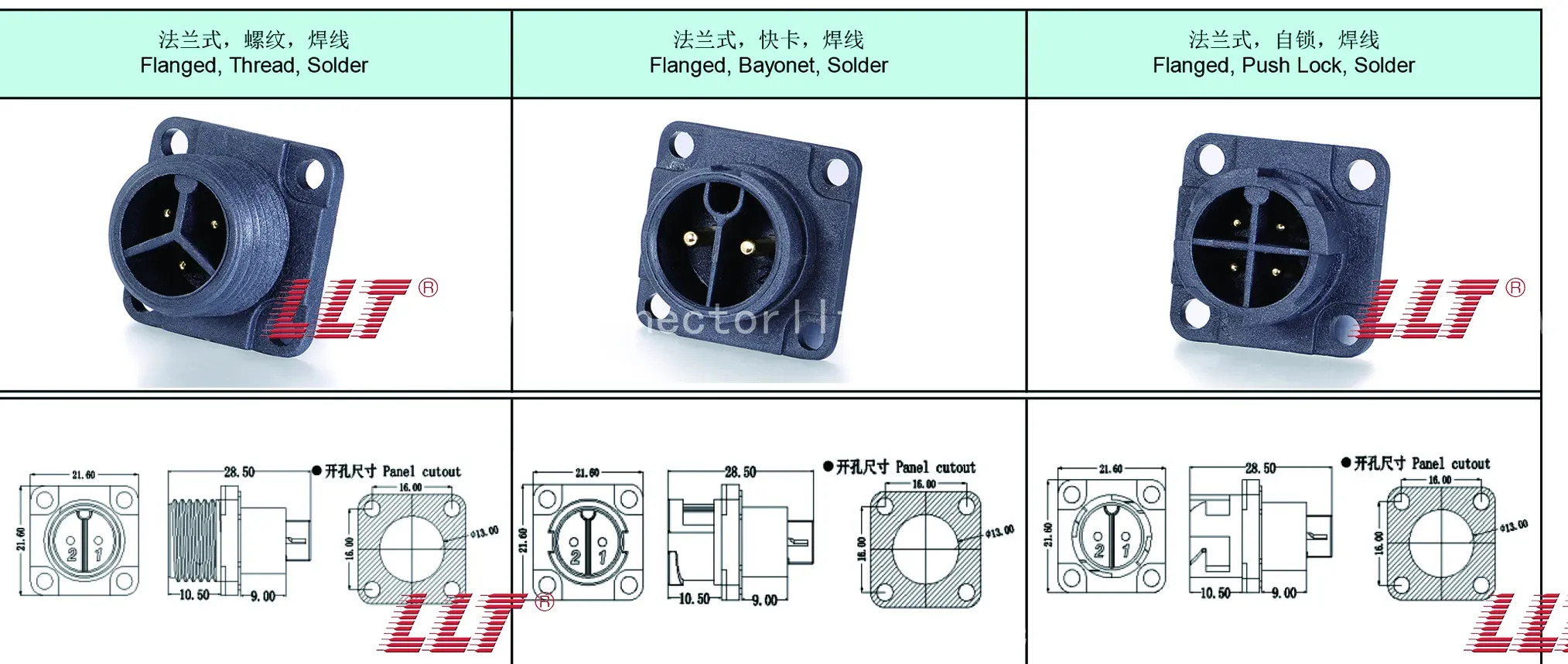

M16 Male Pin Flange M16 Male Pin Flange

M16 Male Pin Flange

Part Number
LLT-M16-15002M4961
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

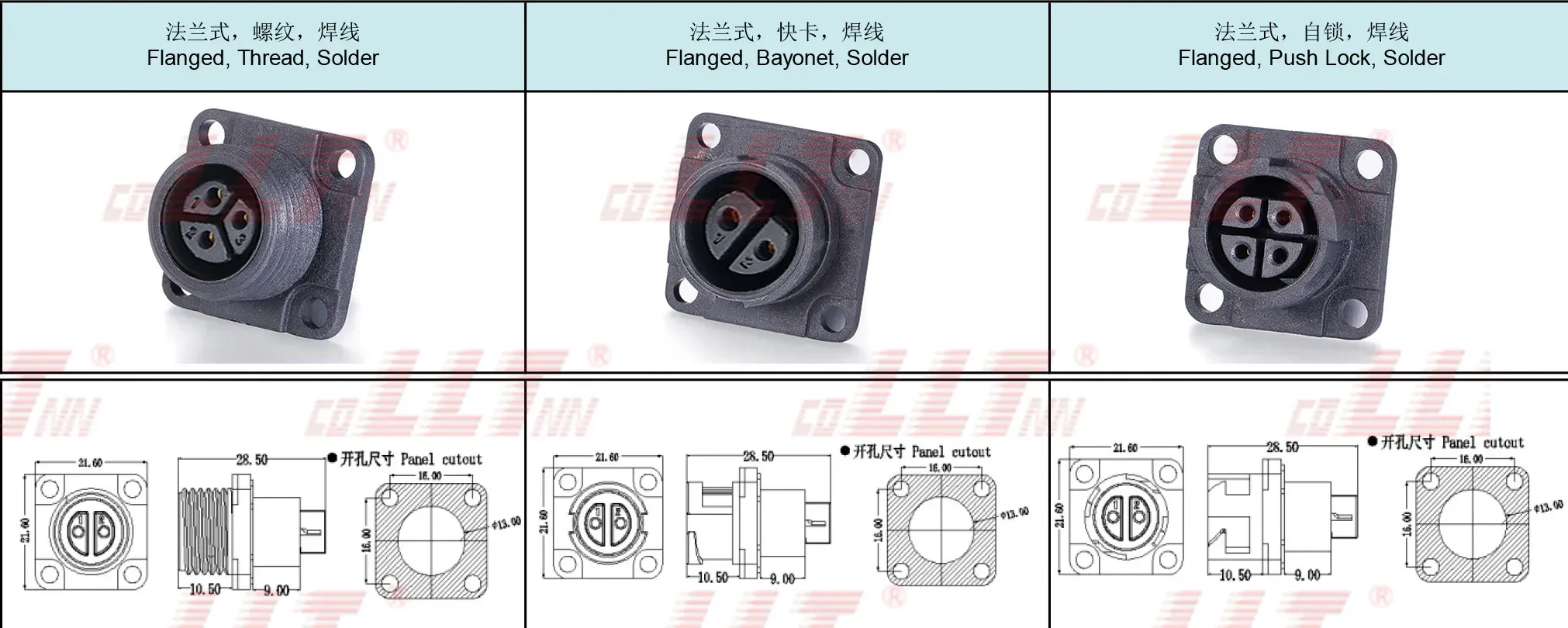

M16 Female Pin Flange M16 Female Pin Flange

M16 Female Pin Flange

Part Number
LLT-M16-15002F4961
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image

Panel Mount Series

M16 Male Pin Front Panel Mount M16 Male Pin Front Panel Mount

M16 Male Pin Front Panel Mount

Part Number
LLT-M16-15002M2861
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

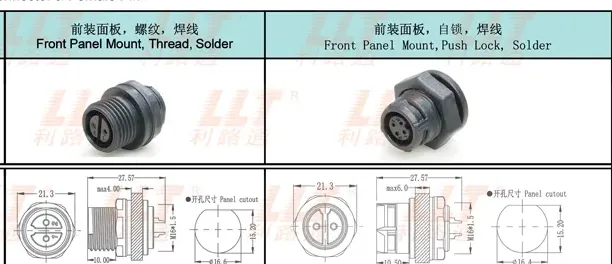

M16 Female Pin Front Panel Mount M16 Female Pin Front Panel Mount

M16 Female Pin Front Panel Mount

Part Number
LLT-M16-15002F2861
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
M16 Male Pin Rear Panel Mount M16 Male Pin Rear Panel Mount

M16 Male Pin Rear Panel Mount

Part Number
LLT-M16-15002M2961
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
↔

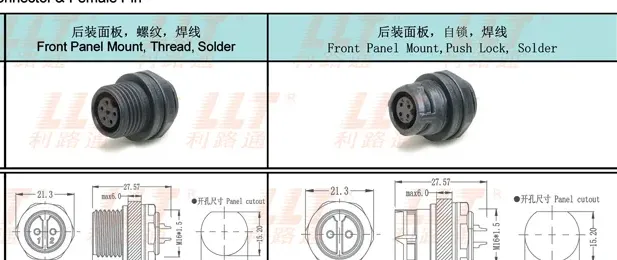

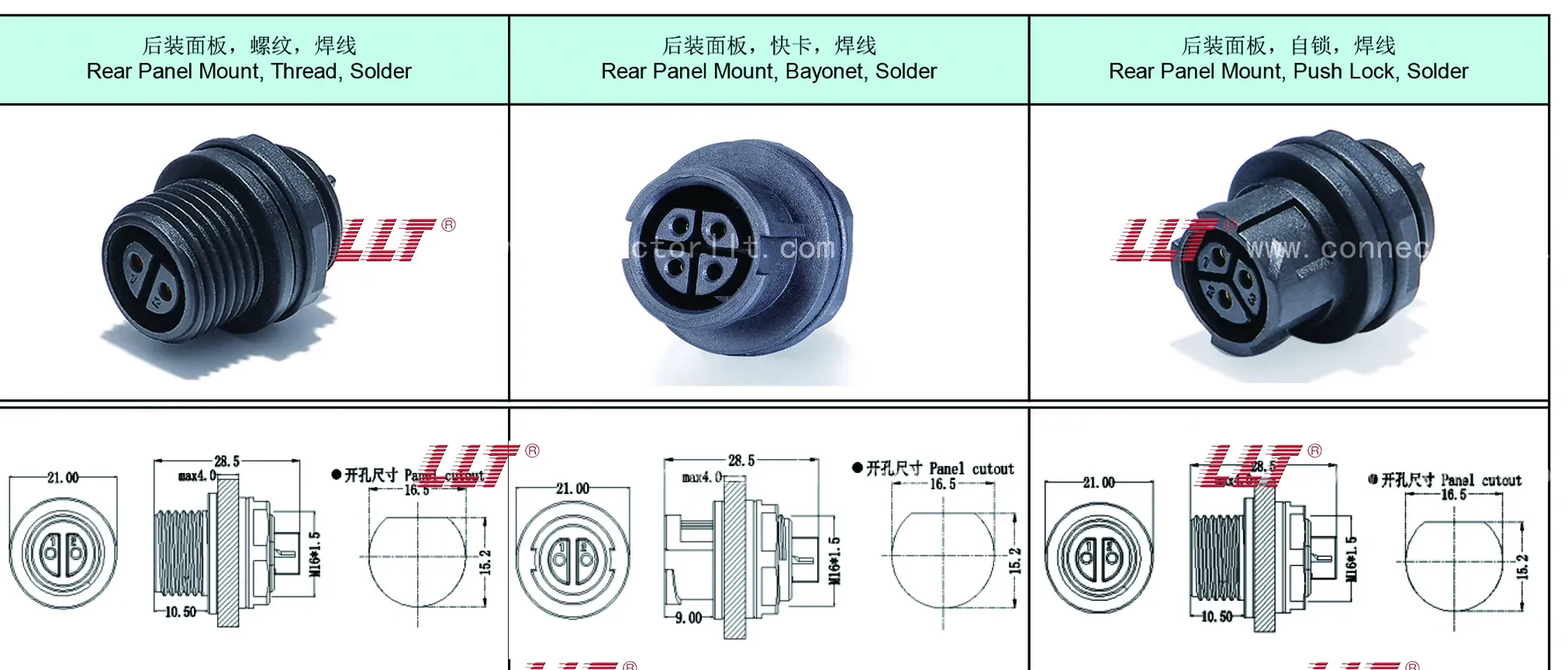

M16 Female Pin Rear Panel Mount M16 Female Pin Rear Panel Mount

M16 Female Pin Rear Panel Mount

Part Number
LLT-M16-15002F2961
Rated Voltage
250V
Rated Current
15A
Wire Gauge
⌀ ≤1.5 mm²
Cable Range
⌀ 1mm-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Protection Level
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Image
